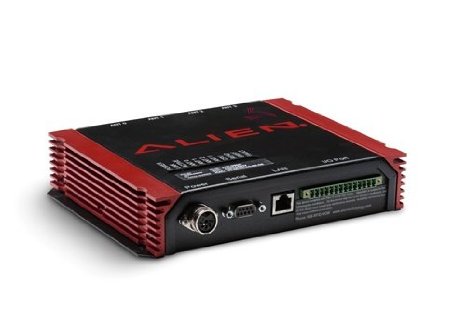

Alien 9900+ Enterprise RFID Reader

$1,774.00

Clear
Spec Sheet
SKU: N/A Categories: , , , ,


Description

The Alien ALR-9900+ Enterprise RFID Reader grants users manageable, robust, top tier EPC Gen 2 RFID solutions for any industry, whether it be supply chain, manufacturing, or asset management applications. The 9900+ possesses rich features, delivering the user remarkable performances thanks to Alien’s best-in-class receive sensitivity, enhanced interference rejection and dynamic authentication. Along with the 9000+’s monostatic antenna architecture and compact footprint, high levels of read rates have never been easier to achieve, no matter the application.

∗Some Features Include: EPC Gen 2 Interoperability, a global hardware platform, and automatic inventory optimization are all things you can expect from the 9900+’s feature-rich Alien Reader Protocol. Along with being easily configurable and upgradable, this reader also includes exceptional sensitivity and performance, easy integration with RFID software, dynamic authentication of Higgs ICs, and automode with an on-board state machine. The 9900+ is RoHS EU 2002/95/EC compliant, supports extended/custom Higgs-3™ IC features, and is installation-friendly with an I/O connector. Antenna reflection cancellation optimization, an auto-seek” function for low duty cycle applications, plus RSSI and speed filters are essential. The small footprint (8” x 8”) and easy monostatic antenna layout coupled with enhanced noise rejection and a robust dense reader interference management, make this reader ideal for any environment or industry.

Brief Specifications

  • Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
  • Operating Frequency: Depends on Selected Region
  • Transmit Power: < 30 dBm
  • Data Interface: RS-232, LAN TCPI/IP
  • GPIO: 4 inputs; 8 outputs
  • Power Source: AC-DC Power converter 100-240 VAC; 50/60Hz
  • Antenna Ports: 4 monostatic ports
  • Dimensions: 8 x 8.3 x 1.8 (in); 20.3 x 17.8 x 4.1 (cm)
  • Weight: 4.4 (lbs); 1995.8 (g)
  • IP Rating: IP 53
  • Operating Temperature: -20° to +55°C
  • Host API: Java, .NET, Ruby APIs
  • Demo Software: Alien Gateway

Why buy the Alien ALR-9900+?

Due to the ALR-9900+’s GPIO system, it is able to communicate simultaneously with up to 12 external devices. This in turn allows for control of multiple gates switches and devices all at once.


If interested in purchasing in volume, please either call or email us about your order. Volume discounts apply.

Additional information

Weight 4.4 lbs
Dimensions 8 × 8.3 × 1.8 in
Vendor

Regions

US – U.S.A., CHN – China & Singapore, CH2 – China Toll & Singapore Toll, BRZ – Brazil, EMA – European Union, ID – Indonesia, JP3 – Japan, KR2 – Korea, MY – Malaysia, TAI – Taiwan, URY – Uruguay, WR1 – Australia
